Description

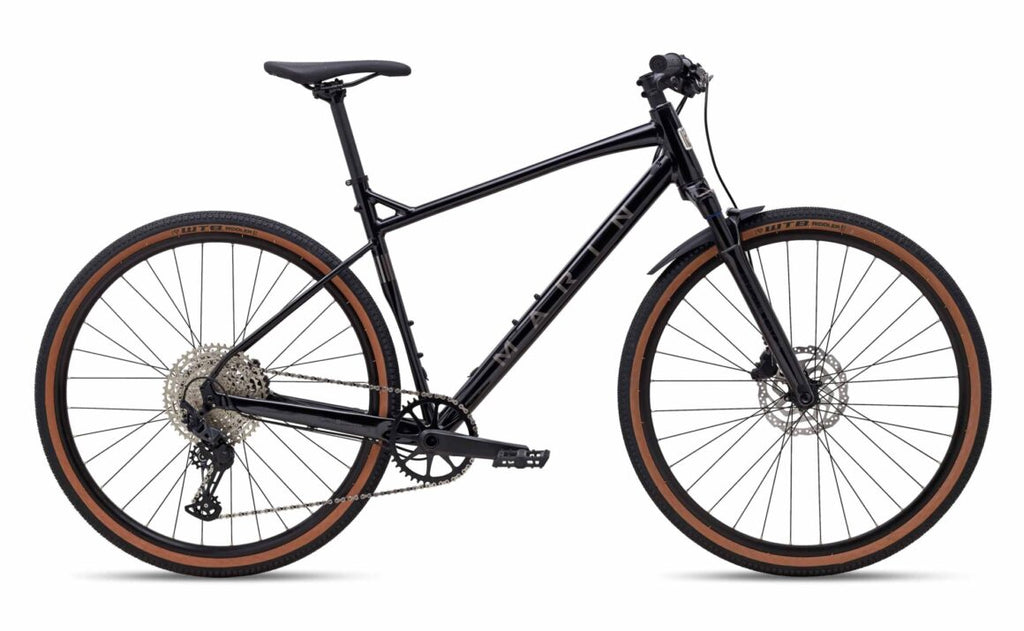

marine gravel bike Marin DSX FS 700C Black/Grey Gravel & Mountain Bike – United By CyclingLONG DISTANCE MIXED SURFACE COMMUTING GRAVEL RIDING ADVENTURE ON AND OFF ROAD RIDING Is it a gravel bike? Is it a mountain bike? Weve got no idea we just know that its a whole mountain of fun. The Marin DSX FS breaks the gravel bike mold even further by adding a 60mm SR Suntour front suspension fork for hard charging, off road adventures. Theres also a 12 speed 1X Shimano SLX drivetrain, Vee Tire Co tires, Shimano hydraulic brakes and plenty of
LONG DISTANCE MIXED SURFACE COMMUTING
GRAVEL RIDING
ADVENTURE ON AND OFF-ROAD RIDING
Is it a gravel bike? Is it a mountain bike? We’ve got no idea - we just know that it’s a whole mountain of fun. The Marin DSX FS breaks the gravel bike mold even further by adding a 60mm SR/Suntour front suspension fork for hard-charging, off-road adventures. There’s also a 12-speed 1X Shimano SLX drivetrain, Vee Tire Co tires, Shimano hydraulic brakes and plenty of reliable Marin components.
SPECIFICATIONS
-
FRAME
Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
-
FORK
SR/Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts
-
RIMS
Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
-
HUB, REAR
Forged Aluminum, 142x12mm, Disc Specific, 32H
-
HUB, FRONT
Forged Aluminum, 100x12mm, Disc, 32H
-
SPOKE, NIPPLES
14g Black Stainless Steel
-
TIRES
Vee Tire Co. Rocket Man, 700Cx44mm
-
DERAILLEUR, REAR
Shimano SLX, RD7100, 12-Speed
-
DERAILLEUR, FRONT
-
-
SHIFT LEVER
Shimano Deore, SLM6100, 12-Speed
-
CRANKSET
Forged Aluminum, 42T Steel Narrow Wide Chainring
-
BOTTOM BRACKET
Sealed Outboard Bearing
-
CHAIN
KMC X12
-
CASSETTE
SunRace, 12-Speed, 11-51T
-
BRAKE, FRONT
Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
-
BRAKE, REAR
Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
-
BRAKE LEVERS
Tektro Hydraulic
-
HANDLEBAR
Marin Mini Riser
-
STEM
Marin 3D Forged Alloy
-
GRIPS
Marin MTB
-
HEADSET
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
-
SEATPOST
Marin Alloy
-
SADDLE
Marin DSX
-
PEDALS
Marin Oso OE Flat
-
EXTRAS
Bolt-On Thru-Axles F and R
GEOMETRY
| S | M | L | XL | |
|---|---|---|---|---|
| STACK | 583.2 | 601.8 | 629.7 | 657.6 |
| REACH | 400 | 425 | 440 | 455 |
| HEADTUBE ANGLE | 68.5° | 68.5° | 68.5° | 68.5° |
| HEADTUBE LENGTH | 100 | 120 | 150 | 180 |
| SEATTUBE ANGLE | 74° | 74° | 74° | 74° |
| SEATTUBE LENGTH | 430 | 480 | 520 | 558 |
| TOPTUBE EFFECTIVE | 567.23 | 597.6 | 620.6 | 643.6 |
| BB HEIGHT | 277.5 | 277.5 | 277.5 | 277.5 |
| BB DROP | 82 | 82 | 82 | 82 |
| CHAINSTAY | 425 | 425 | 425 | 425 |
| WHEELBASE | 1065 | 1097.3 | 1123.3 | 1149.3 |
| STANDOVER HEIGHT | 667 | 708 | 738 | 761 |
| FORK OFFSET | 47 | 47 | 47 | 47 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH | 680 | 680 | 680 | 700 |
| STEM LENGTH | 70 | 70 | 70 | 70 |
| CRANK LENGTH | 170 | 175 | 175 | 175 |
All lengths in millimeters
